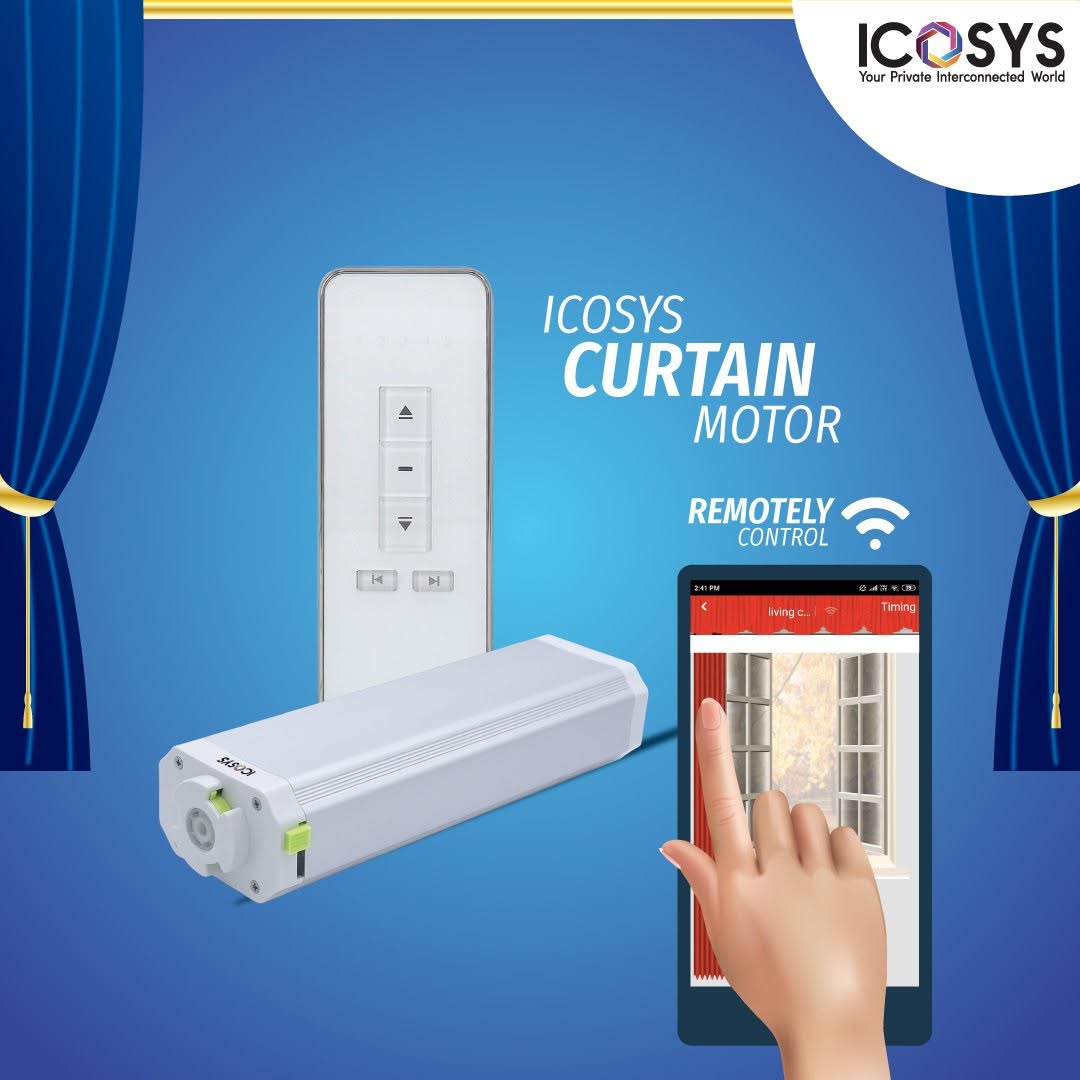

SMART CURTAIN SYSTEM
Automated Spatial Light Manipulation Engines
System Overview
Engineered precision motorized tracking structures linked directly to ambient sunlight parameters or user behavioral routines. Command curtain expansion, full closure, or micro-adjustment positions smoothly with a single touch from anywhere globally. Operating at a virtually silent noise level of under 33dB, it integrates physical comfort with architectural silence flawlessly.
Key Operational Features
- Mobile App Control parameters enabling remote open/close variables from anywhere with an active network connection.
- Integrated Timing Function matrices supporting up to five groups of distinct scheduling configurations.
- Intelligent Travel Memory Engine protecting system tracking points from data loss in the event of local power bus cycles.
Model: DMS - CC01 (Standard AC Core)
| Operating Voltage | AC 100-240V / 50-60Hz |
| Rated Power Power | 50W |
| Rated RPM | 100 / rpm |
| Line Speed Tracking | 10 cm/s |
| Rated Torque Force | 1.6 Nm |
| Acoustic Noise Floor | < 33 dB(A) |
Model: DMS - CC02 (Serial Interface Core)
| Operating Voltage | 23V / 50Hz |
| Acoustic Noise Floor | < 40 dB(A) |
| Stop Limit Access | 2 Intermediate Steps |
| External Controls | Dry Contact & RS485 Bus |
